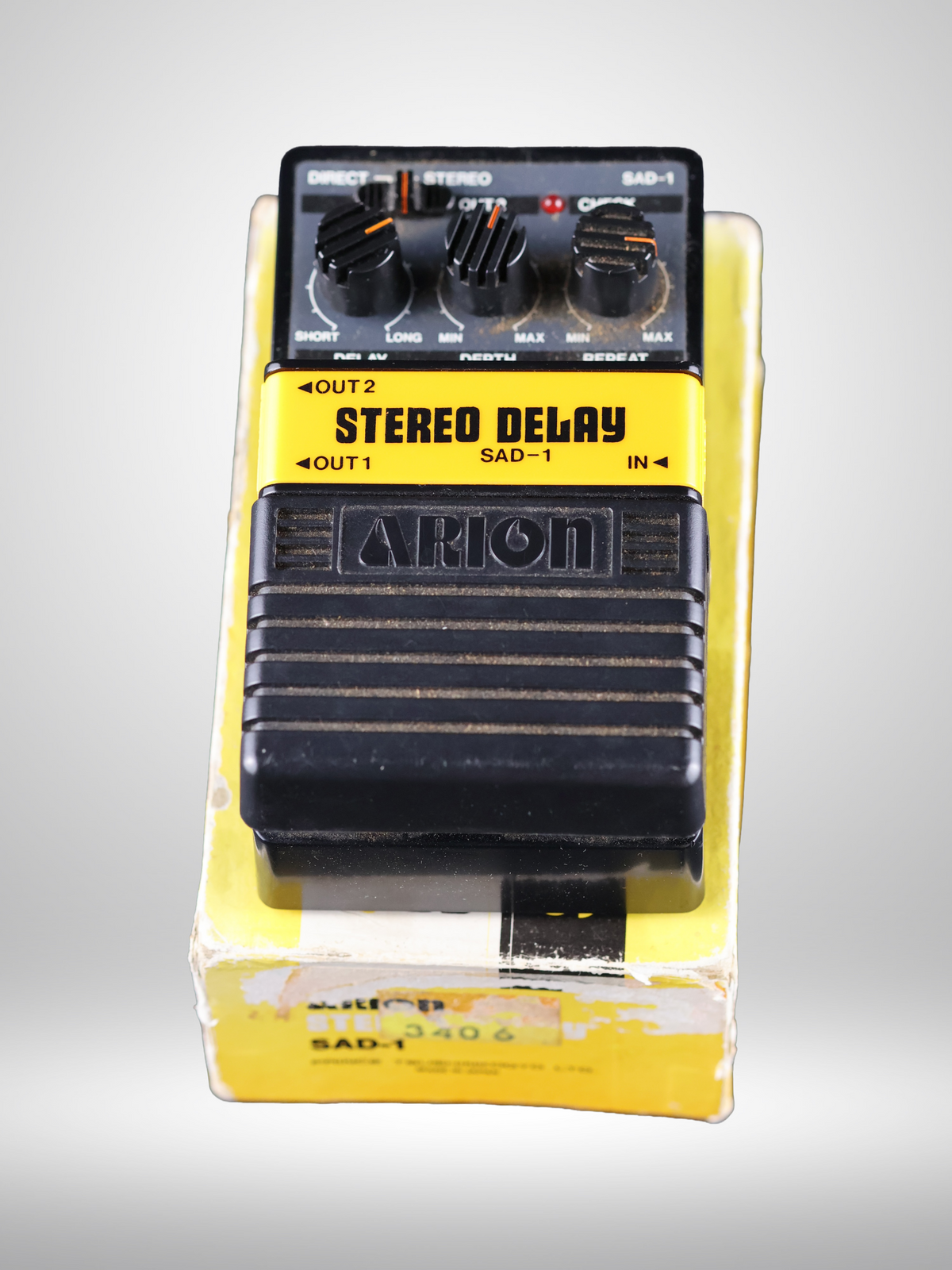

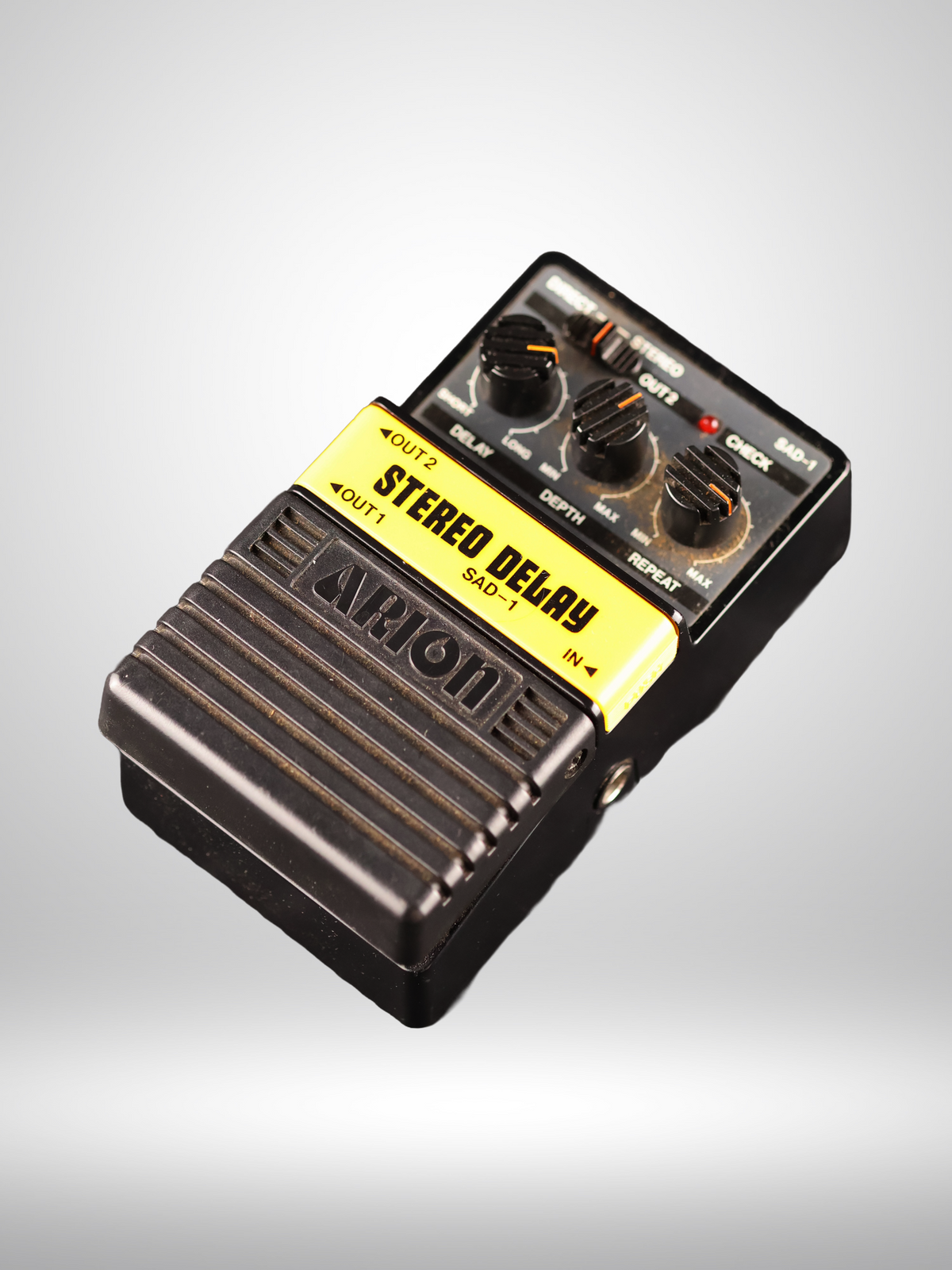

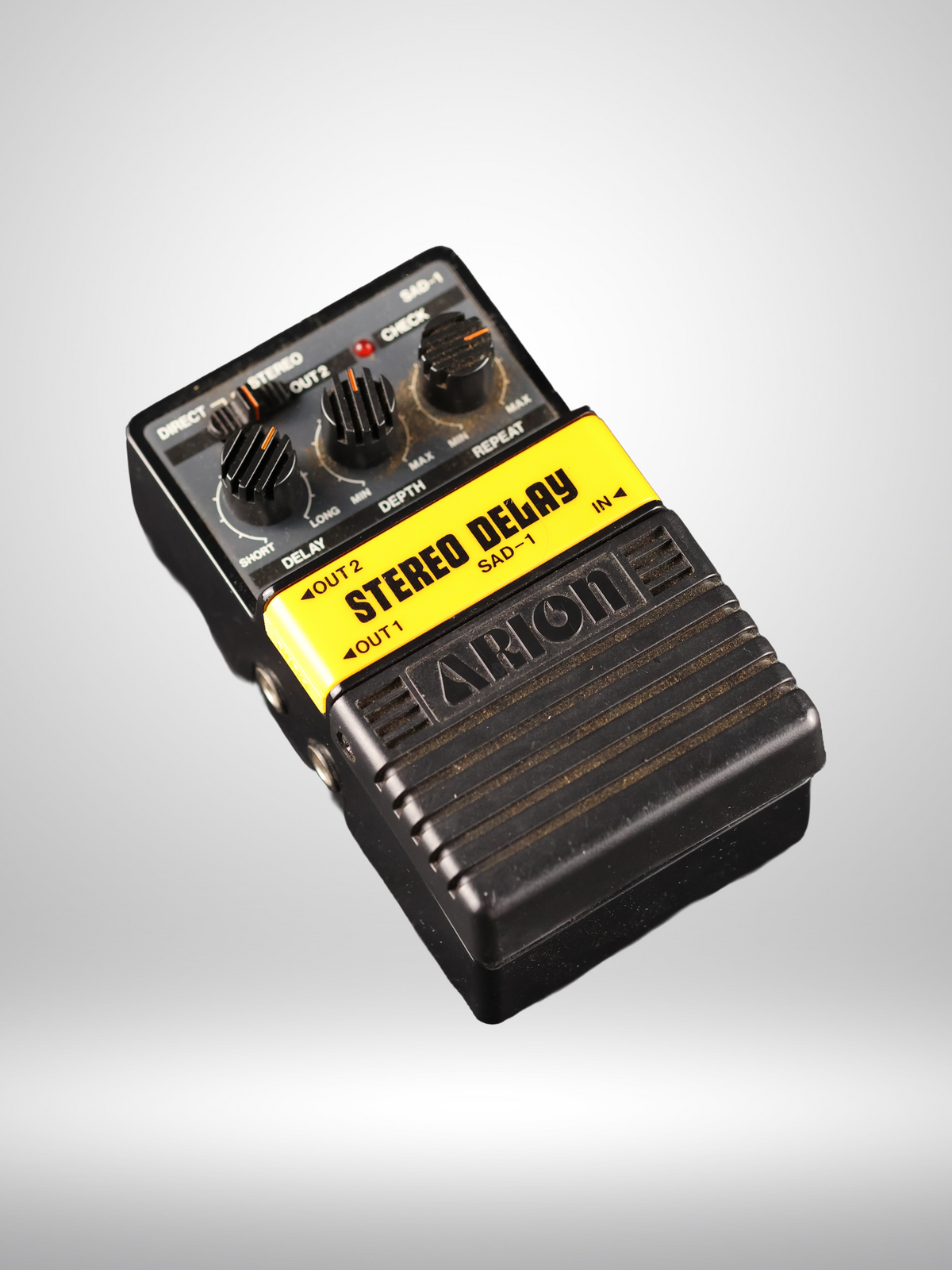

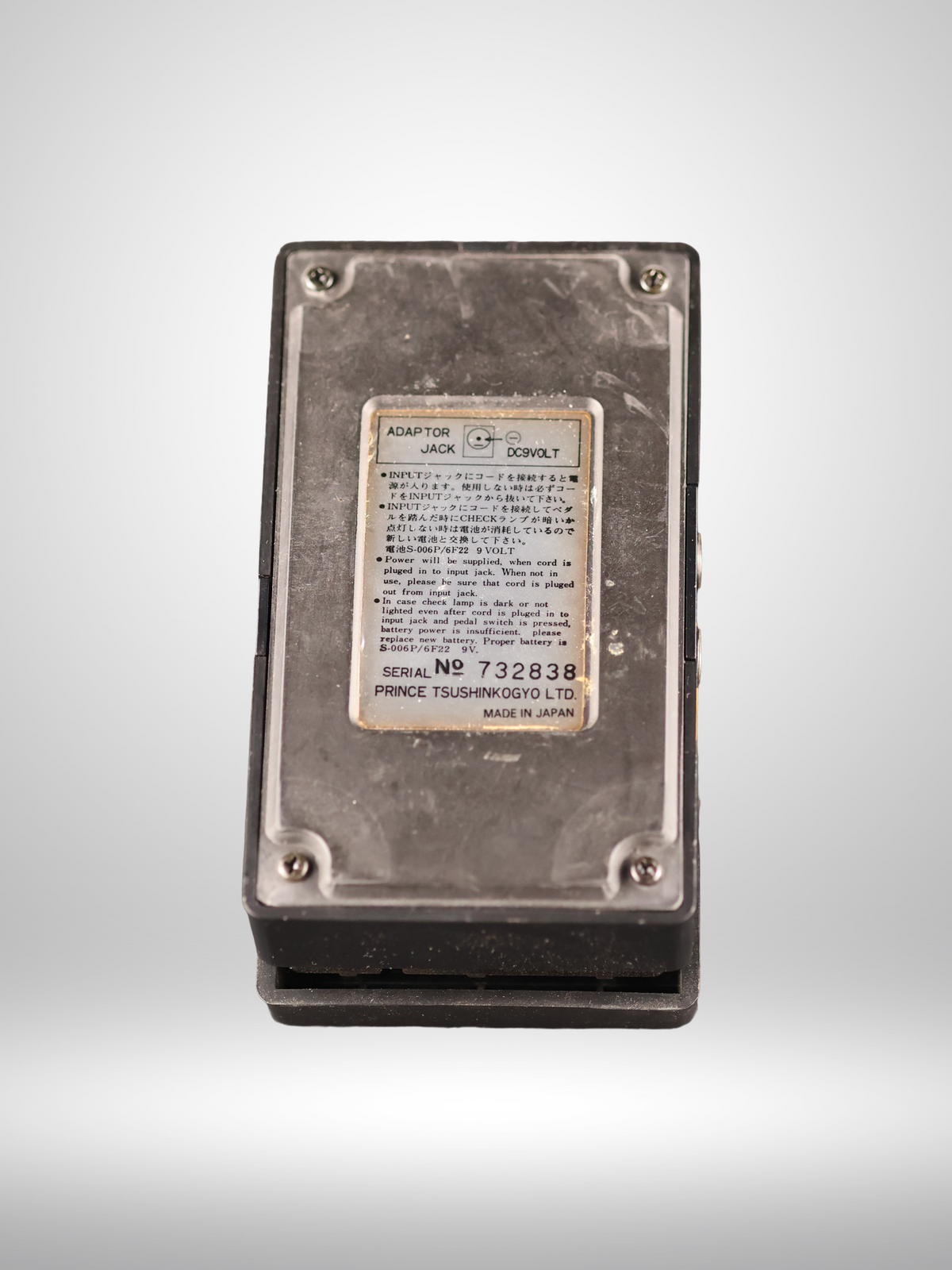

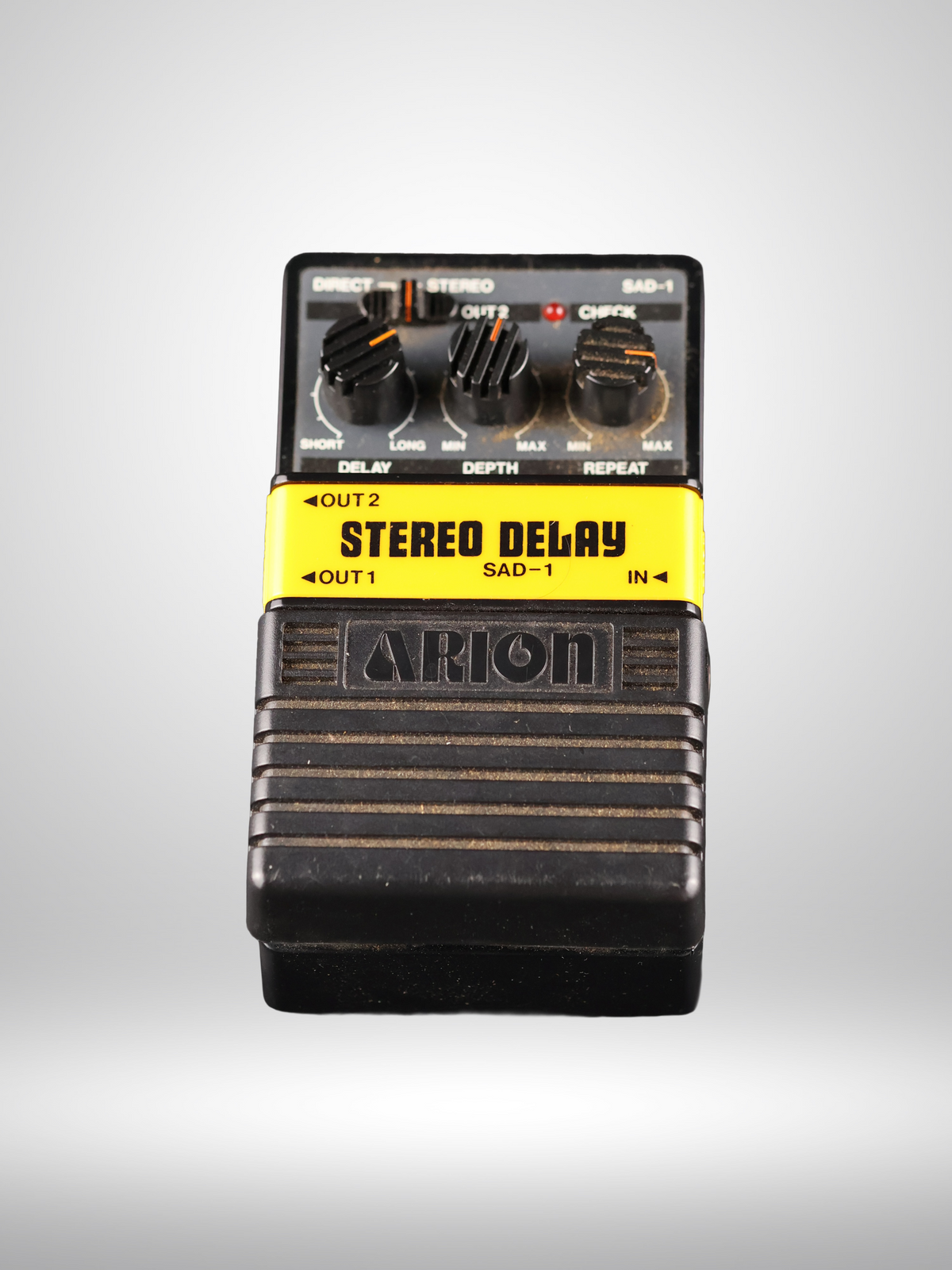

Arion SAD-1 Stereo Analog Delay Pedal, Used
The Arion SAD-1 Stereo Analog Delay is a vintage 1980s guitar pedal manufactured in Japan by Prince Tsushinkogyo Ltd.
Key Specifications & Features
- Type: Analog Delay (Bucket Brigade Device / BBD)
- Core Components: Panasonic MN3205 4,096-stage low voltage BBD chip driven by an MN3102 clock generator
- Delay Time: 50 ms to 300 ms
- Controls: Delay Time, Depth, Repeat (Feedback), and an OUT 2 mode switch (direct/stereo)
- Inputs & Outputs: 1/4-inch mono input, dual outputs (OUT 1 and OUT 2) allowing stereo or dry/wet signal routing
- Input Impedance: 240K ohms
- Load Output Impedance: 10K ohms
- Maximum Input Level: -1 dB (0 dB = 1V)
- Maximum Output Level: 0 dB (0 dB = 1V)
- Noise Level: -68.5 dB (0 dB = 1V Input Short)
- Power Supply: 9V battery (006P) or standard 9V DC center-negative AC adapter
- Bypass Type: Buffered bypass
