Arion SDI-1 Stereo Distortion Pedal, Used

Arion SDI-1 Stereo Distortion Pedal, Used

£39.00 GBP
£39.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

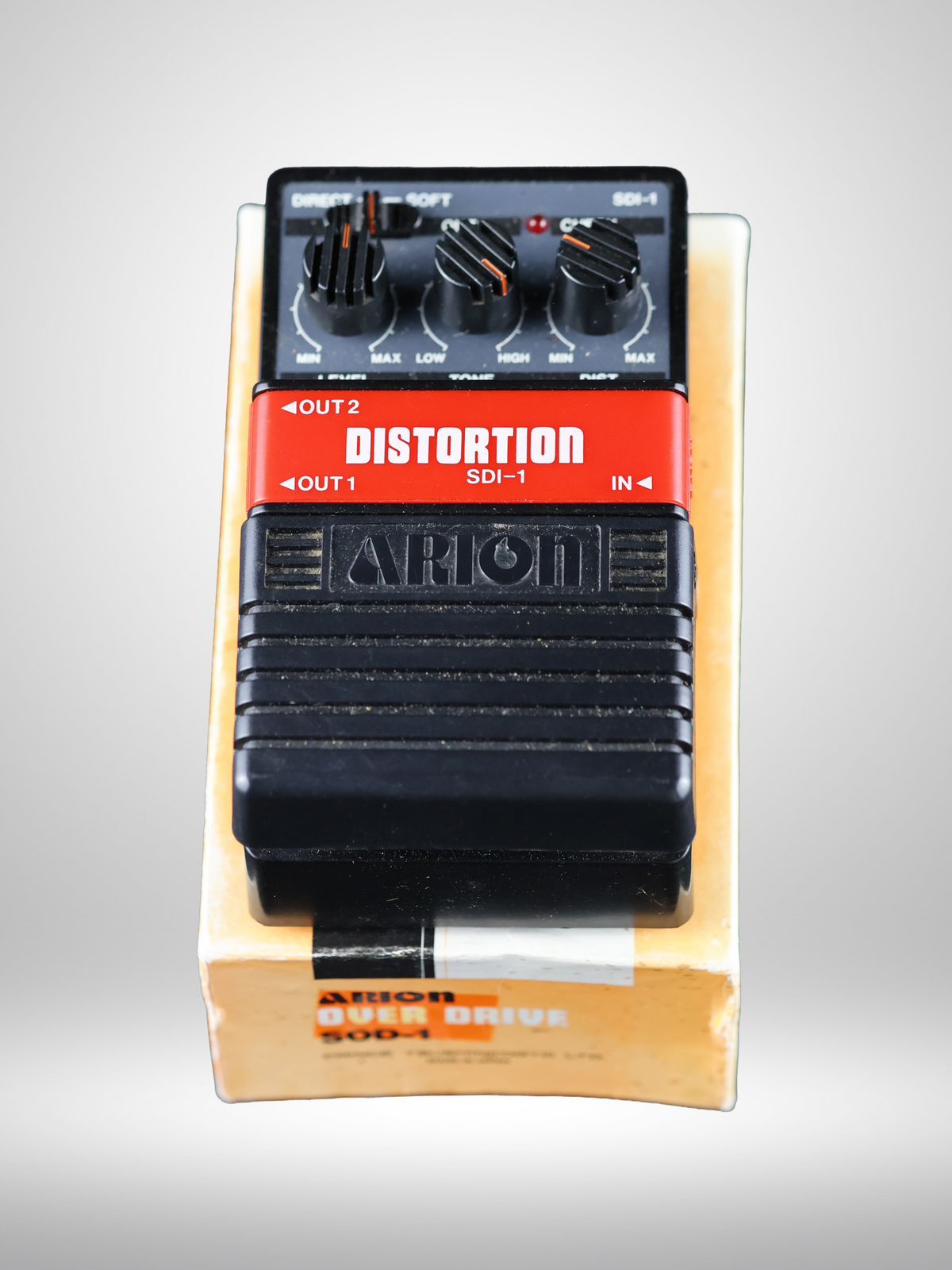

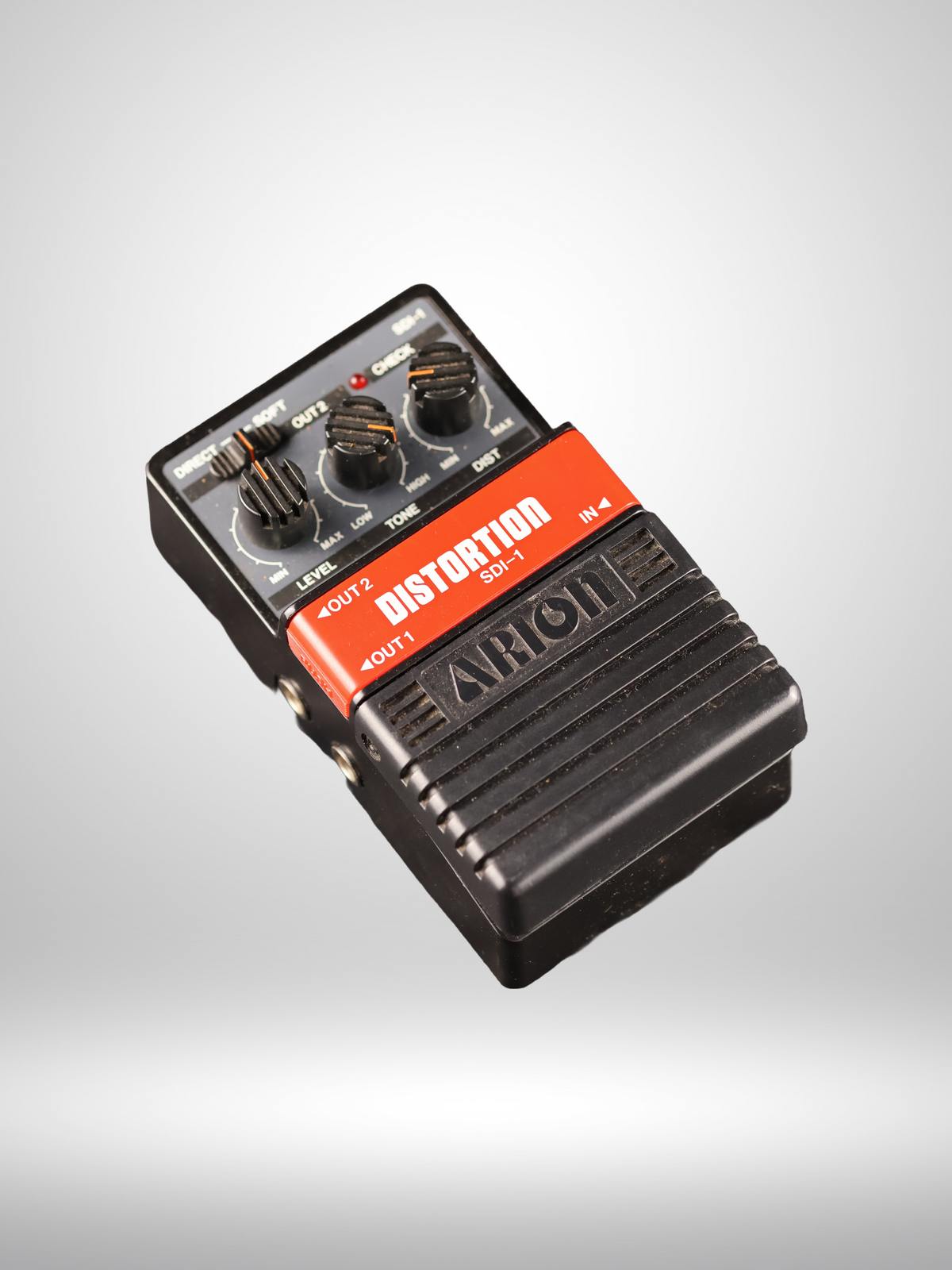

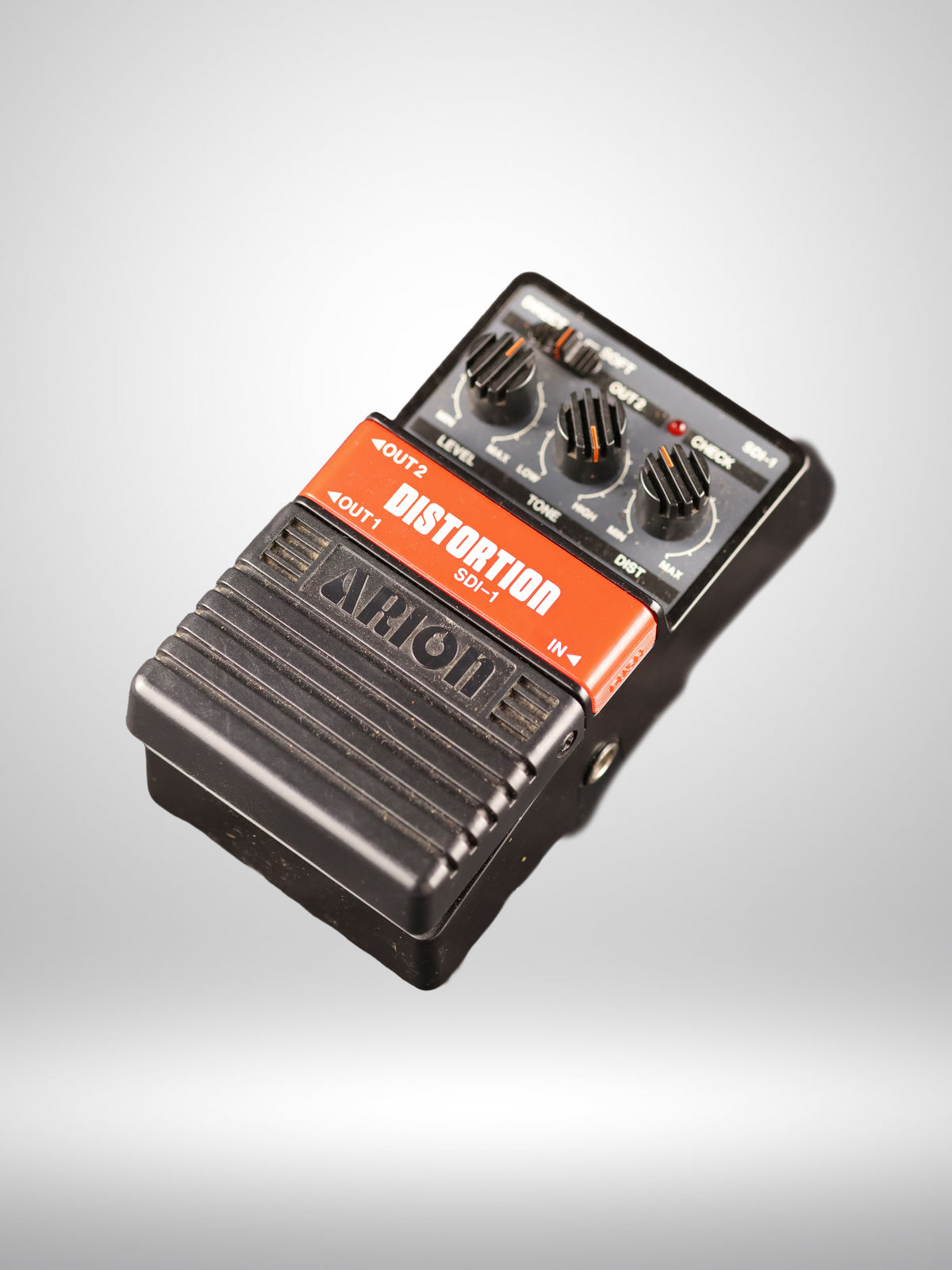

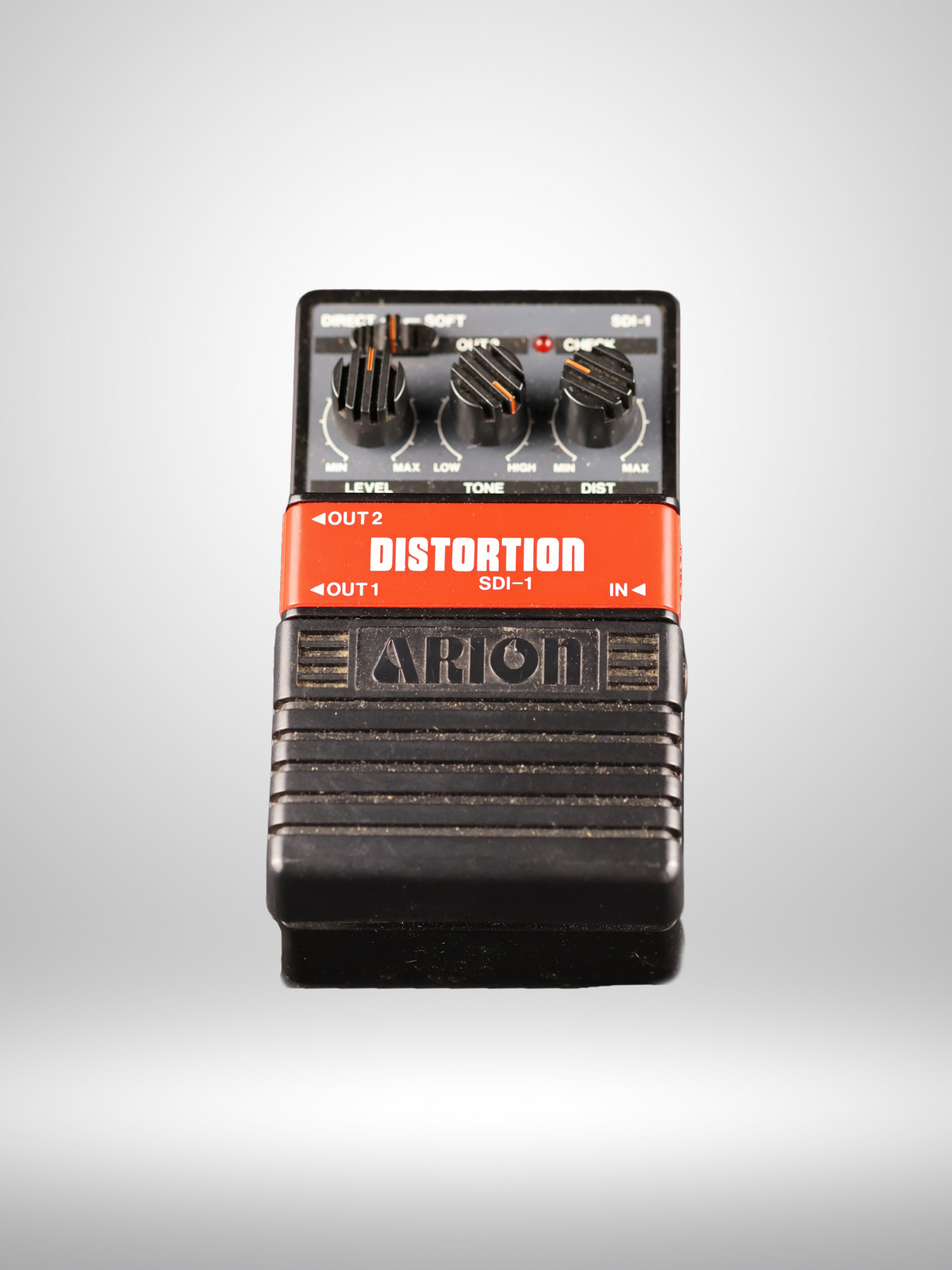

Arion SDI-1 Stereo Distortion Pedal, Used, with Original Box.
The Arion SDI-1 Stereo Distortion is a budget-friendly analog guitar effects pedal originally manufactured in the 1980s in Japan (and later Sri Lanka).

General Specifications
  • Circuit Type: Analog
  • Power Requirements: 9V DC battery (6F22/006P) or a 9V DC AC adapter (drawing approximately 7.2mA to 8mA current consumption)
  • Input Impedance: 300 kΩ (or ~300MΩ per manufacturer spec notation)
  • Output Impedance: 10 kΩ or greater
  • Noise Level: -65 dB
  • Dimensions: 73 x 50 x 127 mm (approx. 2.87 x 1.97 x 5 inches)
  • Weight: 330 g (approx. 0.73 lbs)

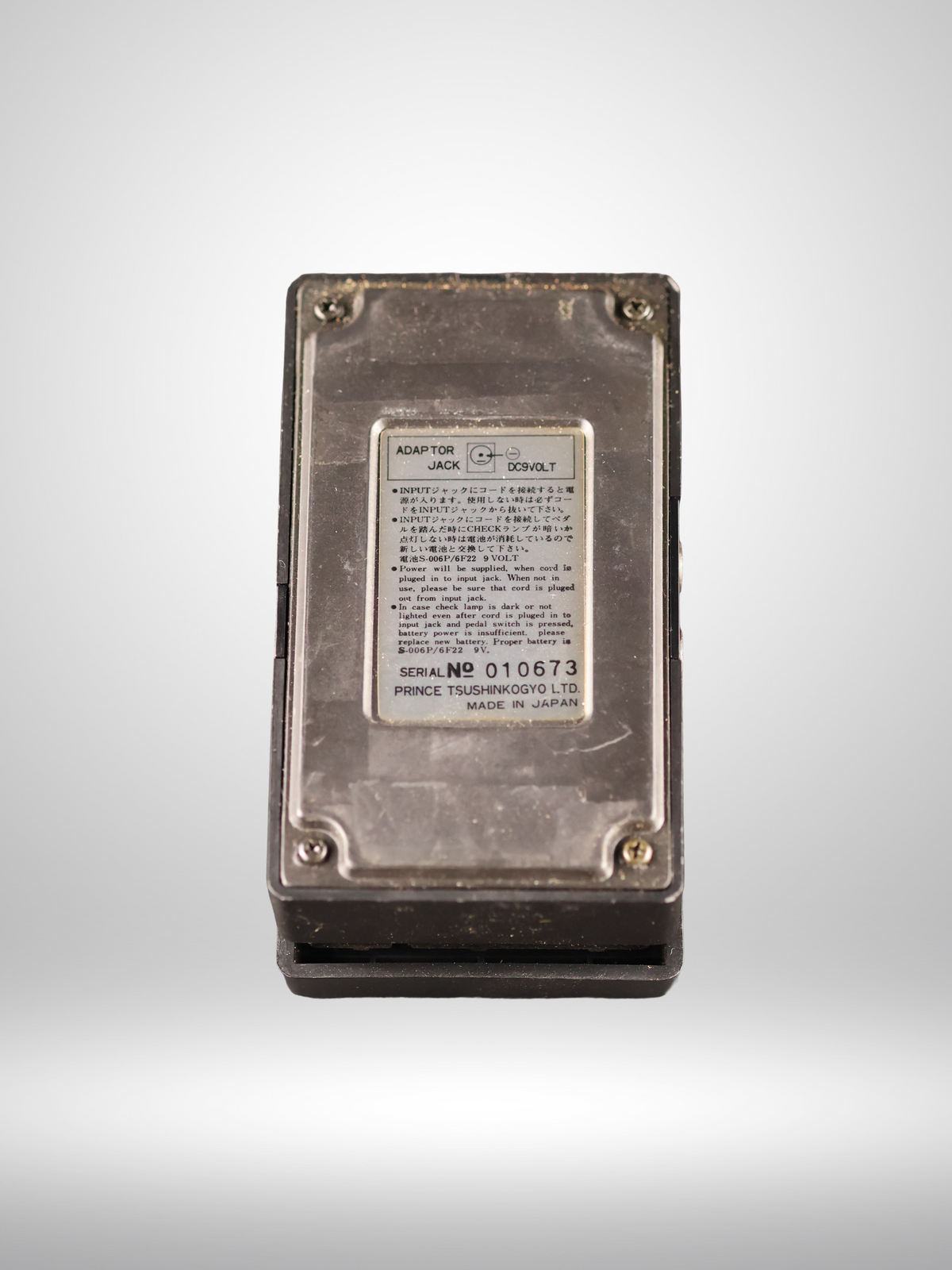

  • Chassis Construction: Molded plastic body with a metal base plate

Controls & Features
  • Knobs: Level (output volume), Tone (frequency response from low to high), and Dist (distortion intensity)
  • Switch: Soft / Direct mode switch and footswitch
  • Indicator: Red "Check" LED battery/effect status light
  • I/O Connections: 1/4-inch Input jack, dual Output jacks (Out 1 and Out 2) for stereo configurations, and a 9V AC adapter jack
  • Stereo Routing Options:
    • Soft Mode: Both outputs carry the distorted signal.
    • Direct Mode: Splits the signal to send a clean sound to one amp/output and a distorted sound to the other
