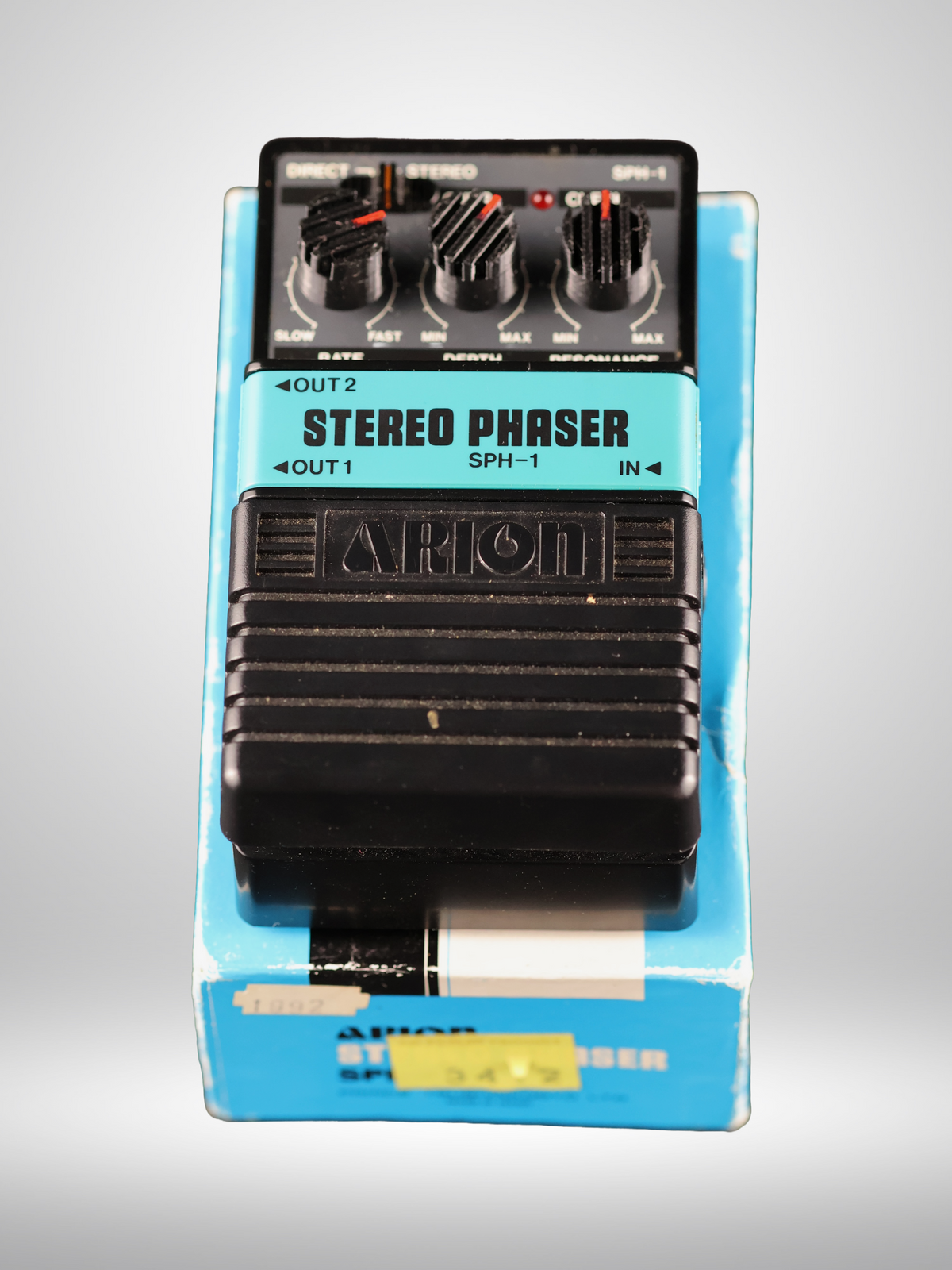

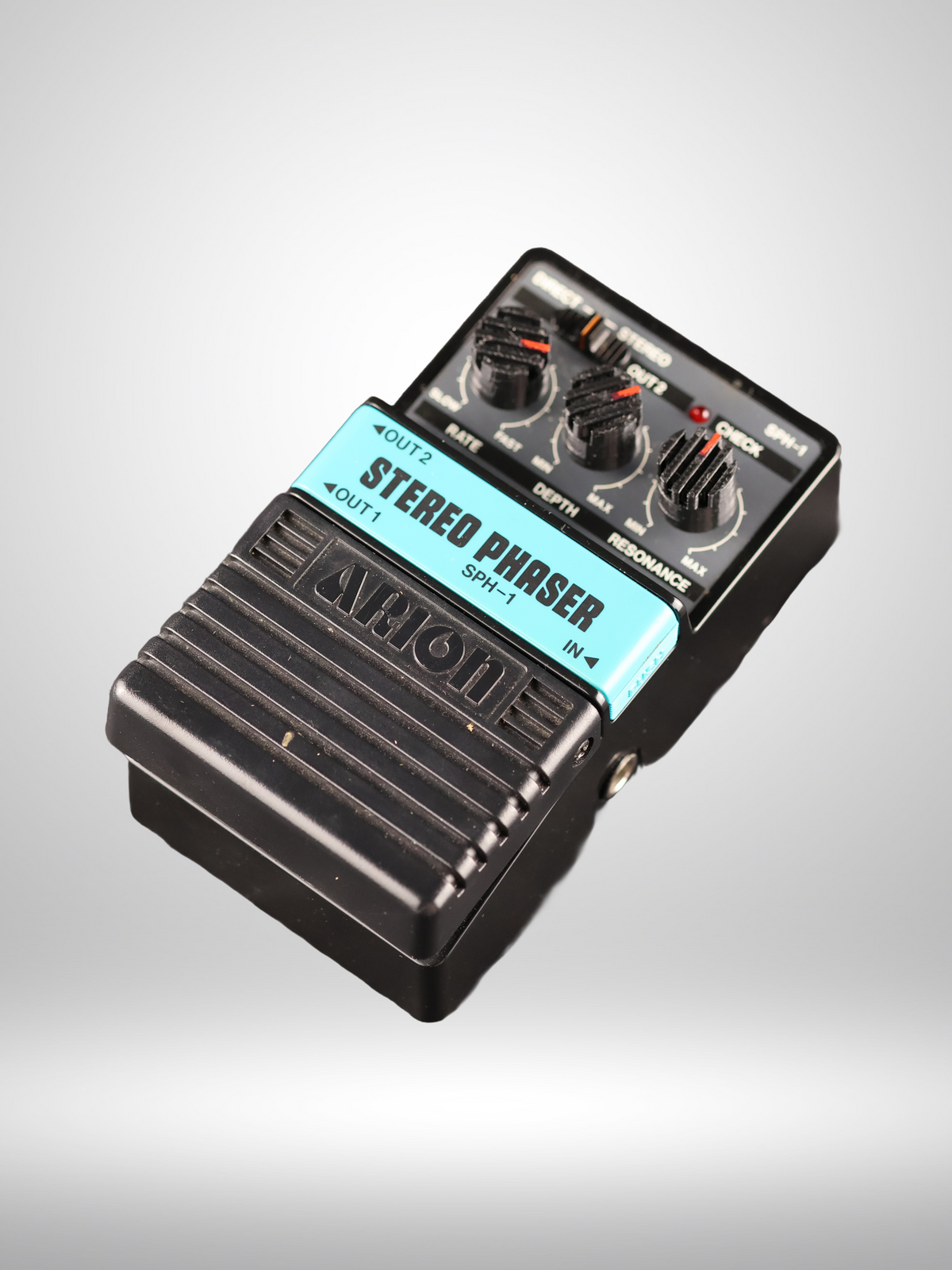

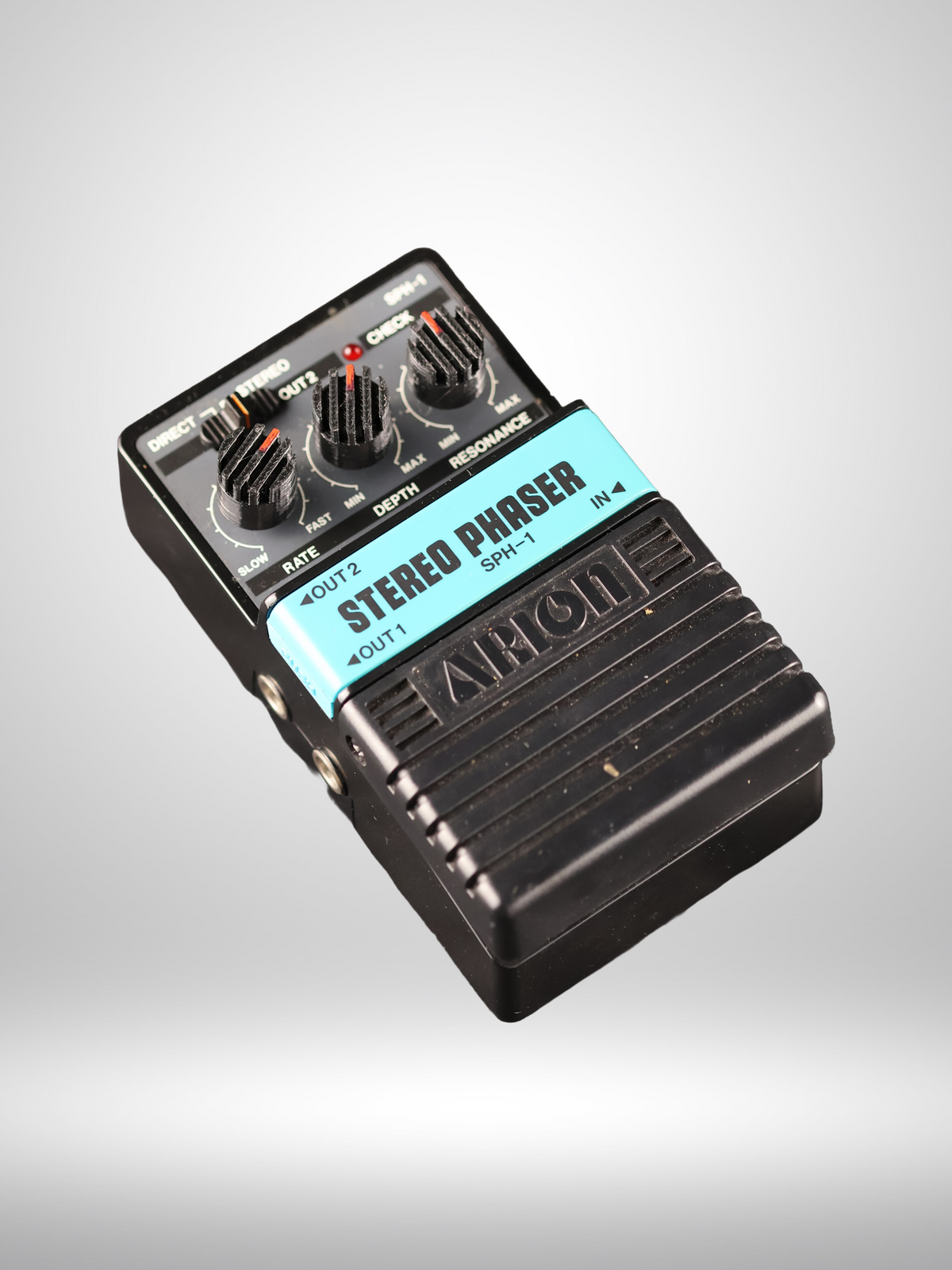

The Arion SPH-1 Stereo Phaser is a vintage analog guitar effects pedal known for its lush 4-stage phase shifting (720 degrees) and ability to emulate a rotating speaker (Leslie) cabinet.
Key Specifications & Features
Circuit Type: Analog 4-stage phase shifter

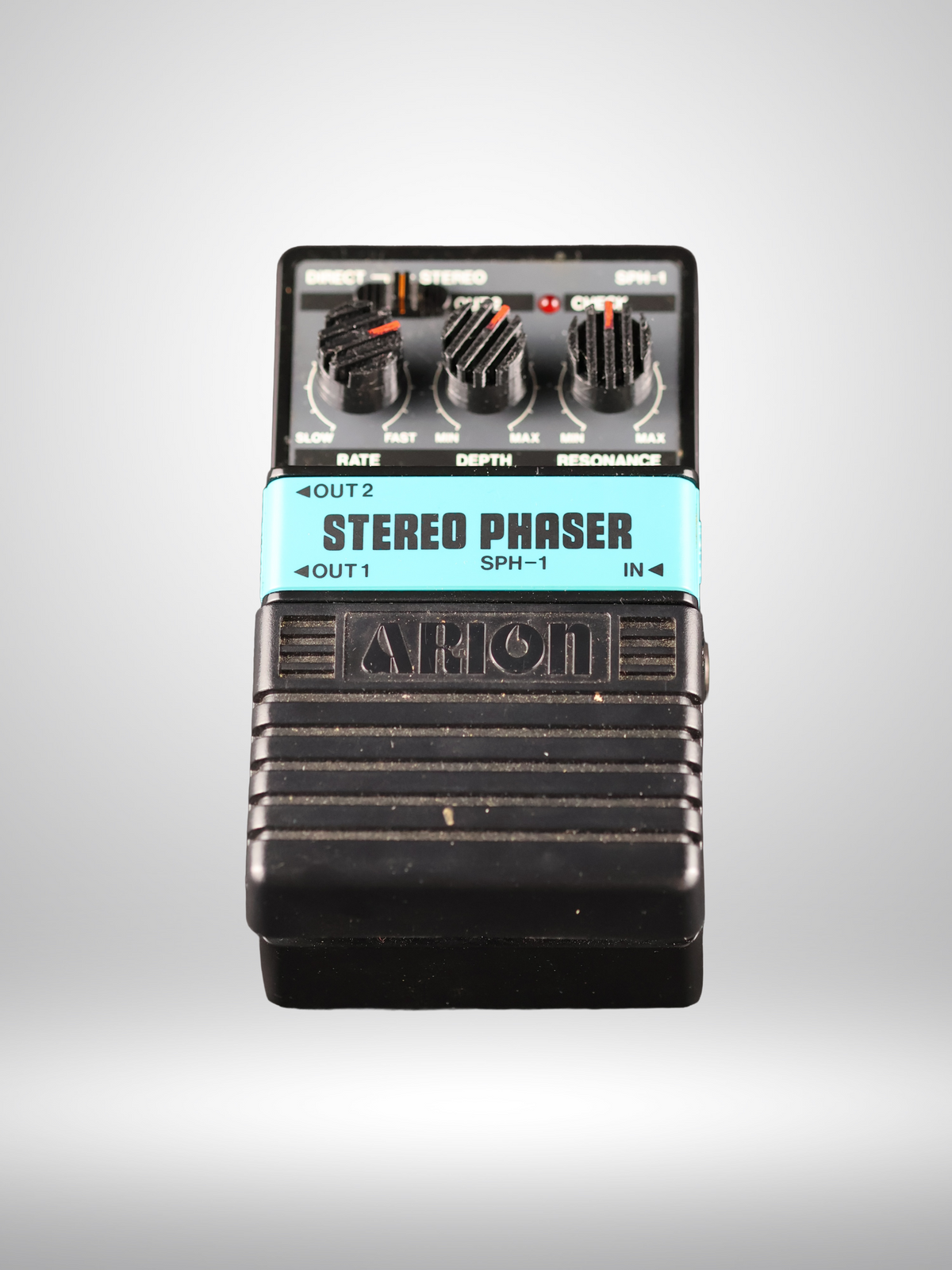

Controls:
Rate: Adjusts the speed/frequency of the LFO (Low-Frequency Oscillator) wave (from 100ms to 6s).
Depth: Controls the intensity and range of the sweep.
Resonance (RES): Feeds the effected signal back into the circuit for a more aggressive, vocal, or rotating-speaker-style sound.
Outputs: Features dual outputs (Out 1 and Out 2) with a mode switch to route a clean signal or a stereo effect.

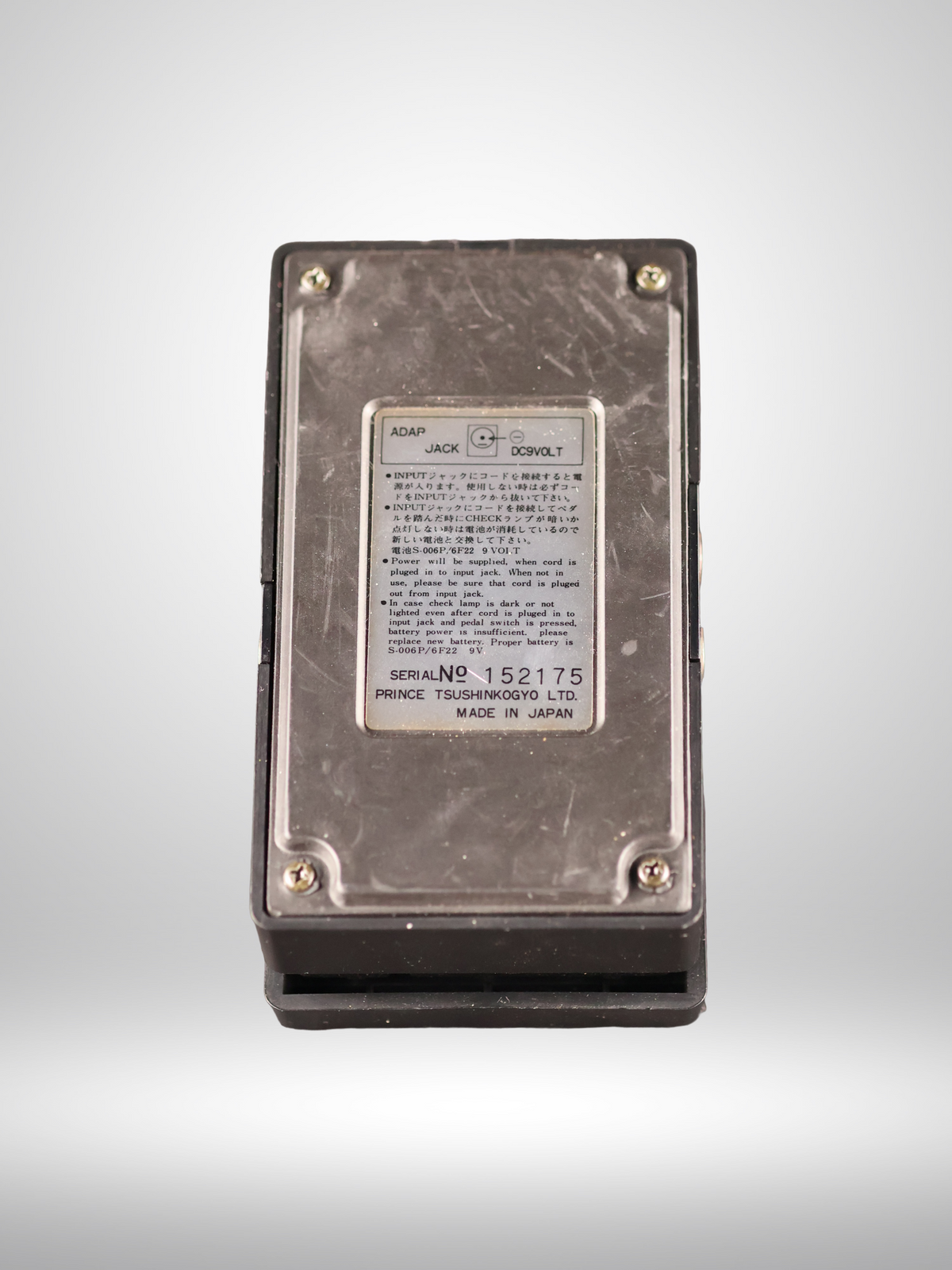

Power Requirements: DC 9V battery or a 9V AC adapter (drawing approximately 17mA).
Physical Build: Lightweight plastic enclosure weighing around 325g (including battery) with dimensions of 73 x 50 x 127 mm
