Boss CS-1 Compression Sustainer Pedal, Japan, Used
Boss CS-1 Compression Sustainer Pedal, Japan, Used
Regular price
£89.00 GBP
Regular price
Sale price
£89.00 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

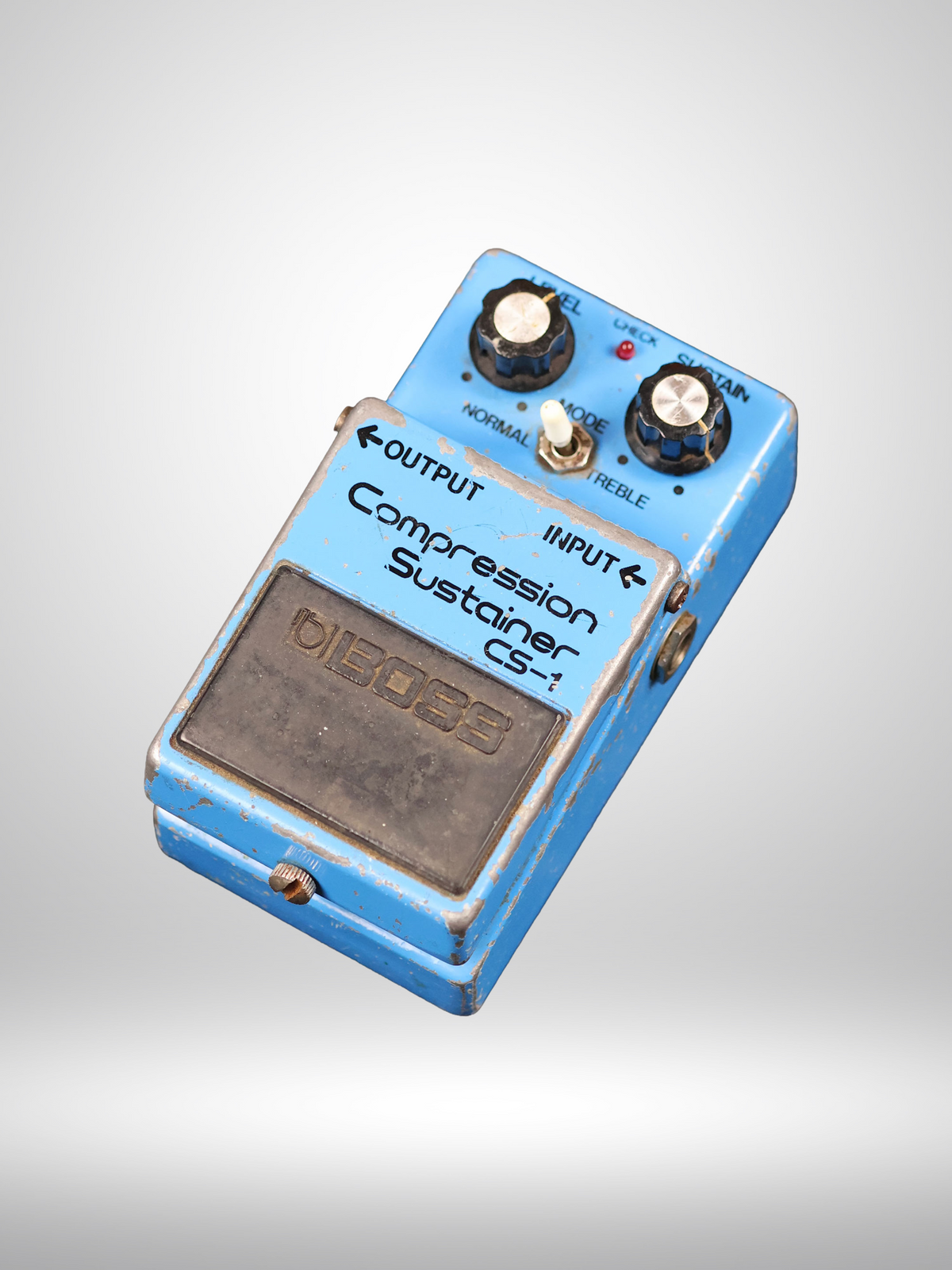

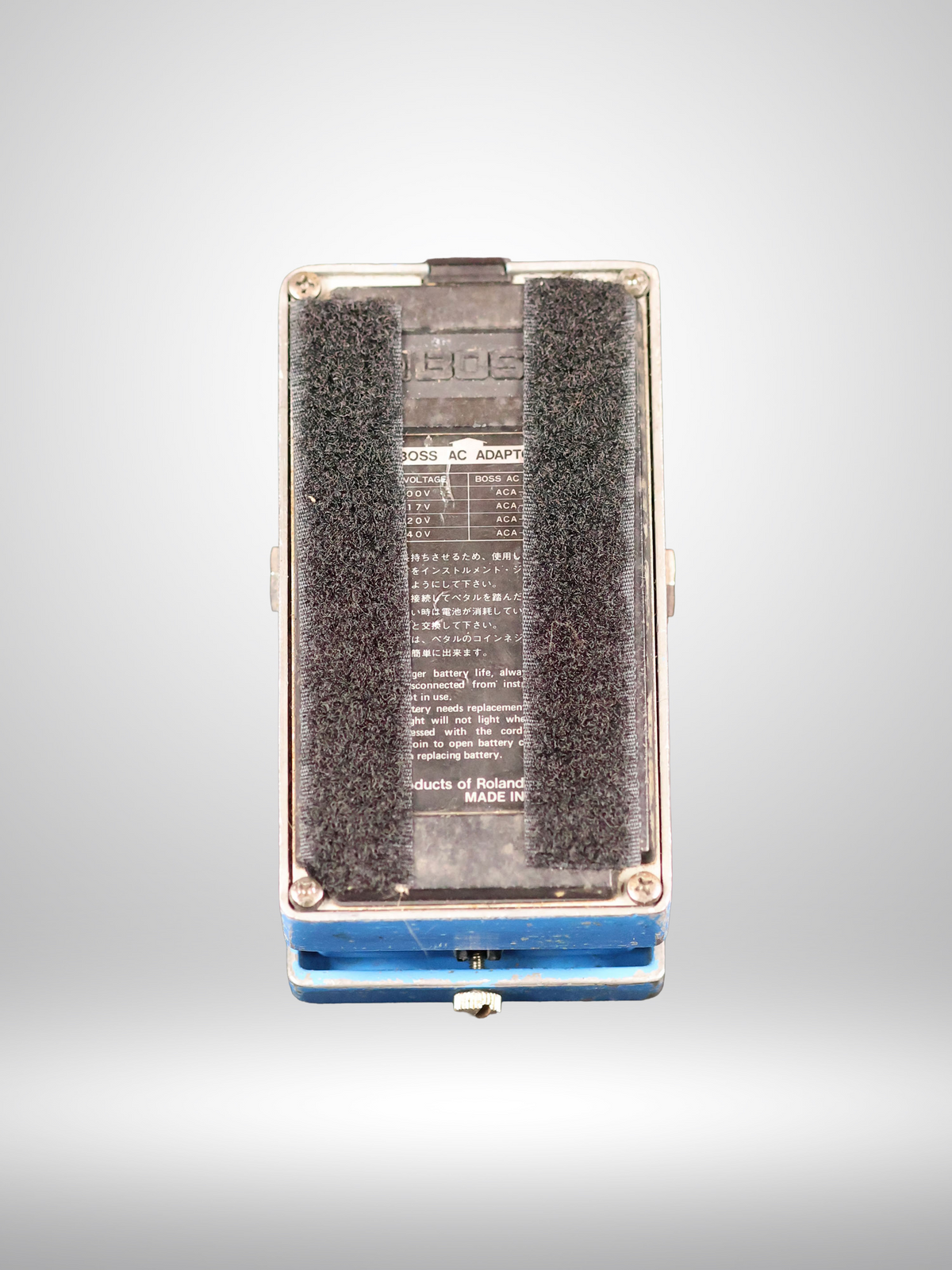

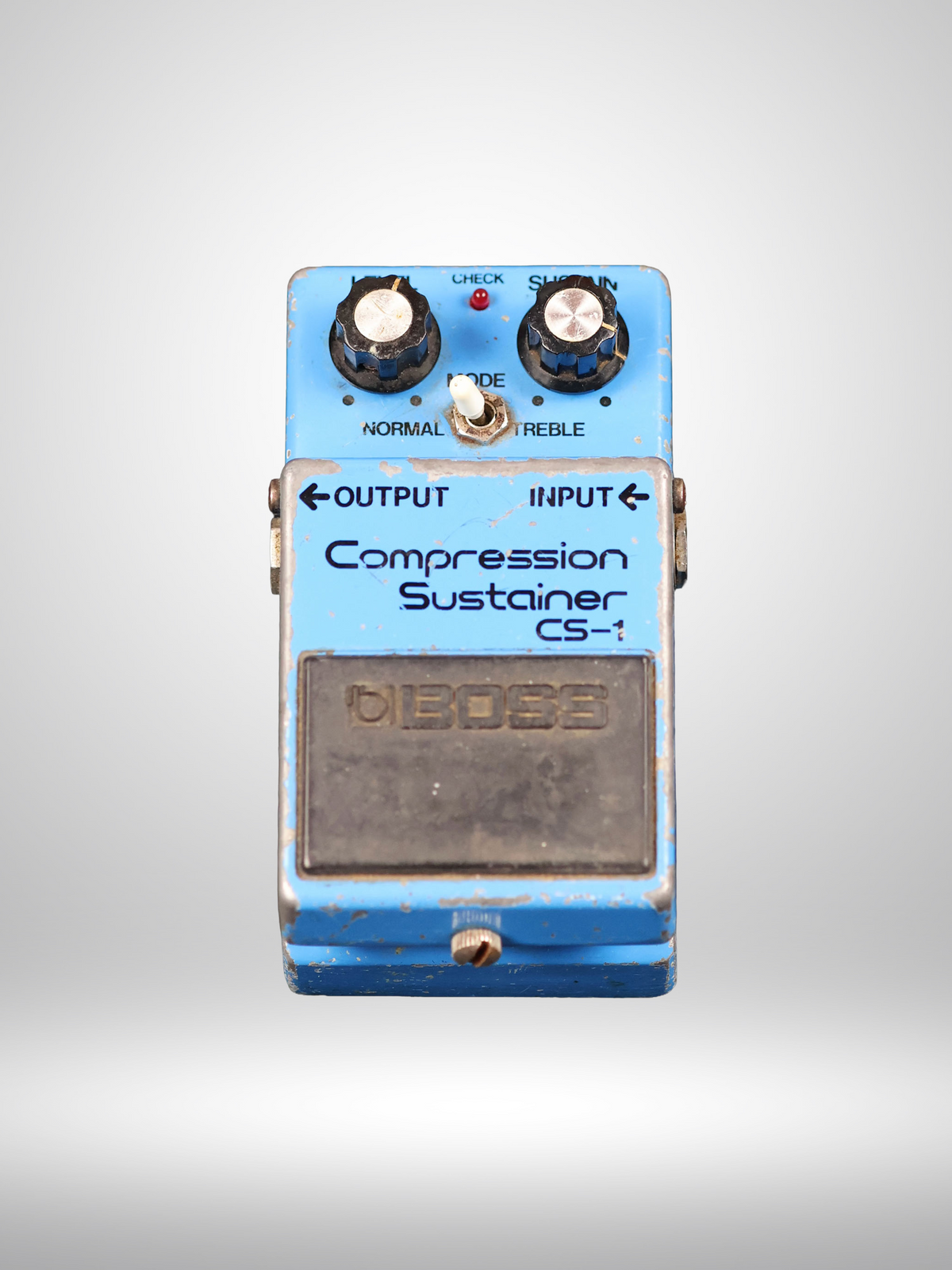

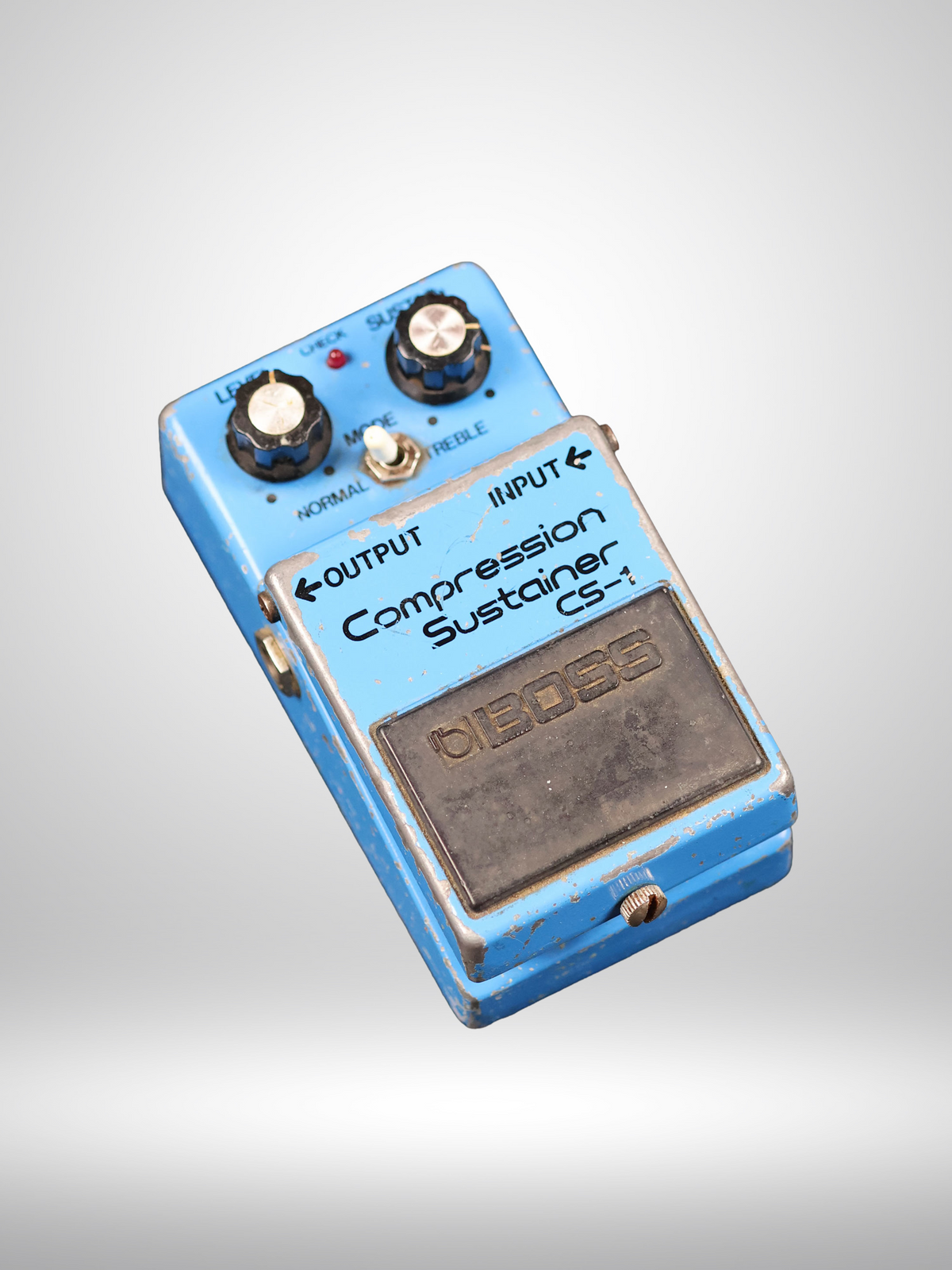

Boss CS-1 Compression Sustainer Pedal, Japan, Used
The Boss CS-1 Compression Sustainer is the first compact compressor pedal produced by Boss, manufactured in Japan from 1978 to 1982.
Technical Specifications
Circuit Type: Photocoupler (optocoupler) design, distinct from later VCA-based (Voltage Controlled Amplifier) compressors like the CS-2 and CS-3.
Controls:
- Level: Controls the overall output volume.
- Sustain: Adjusts the amount of compression and sustain.
- Normal / Treble Mode Switch: 2-way toggle switch to change tonal character (Treble mode cuts bass and boosts high frequencies).
Jacks: Input, Output, and AC Adaptor.
Power Supply: 9V battery or optional Boss ACA-series AC adaptor.
Current Draw: 5 mA (DC 9V).
Equivalent Input Noise: -100 dB.
Maximum Input: +5 dB.
Maximum Output: -10 dB.
Compression Range: 60 dB.
Output Load Impedance: Over 10k ohms.
Dimensions: 70 (W) x 55 (H) x 125 (D) mm.
Weight: 400g / 14 oz
