Zoom 505 II Guitar Multi-Effects Pedal, Used
Zoom 505 II Guitar Multi-Effects Pedal, Used
Regular price
£29.00 GBP
Regular price
Sale price
£29.00 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

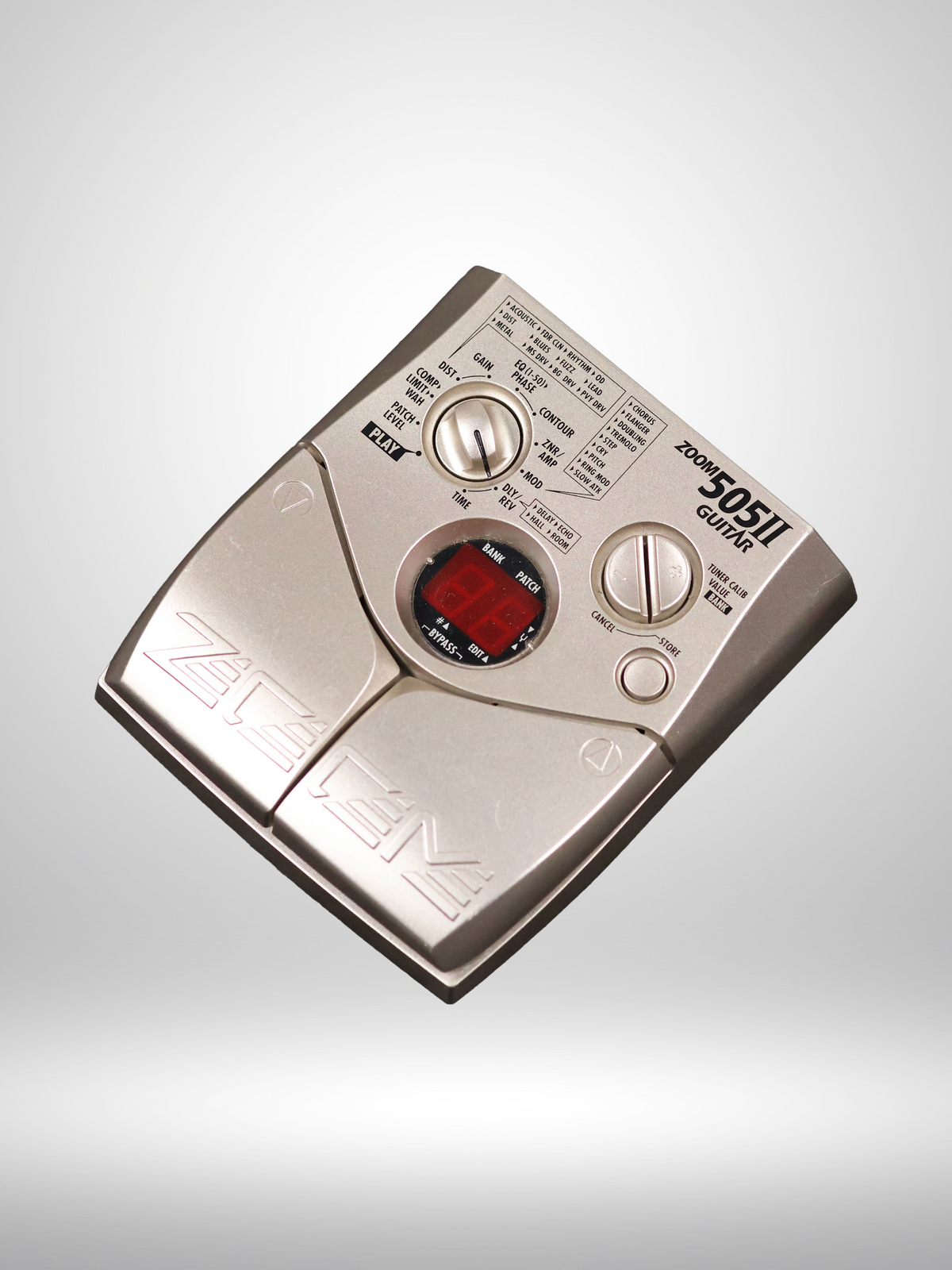

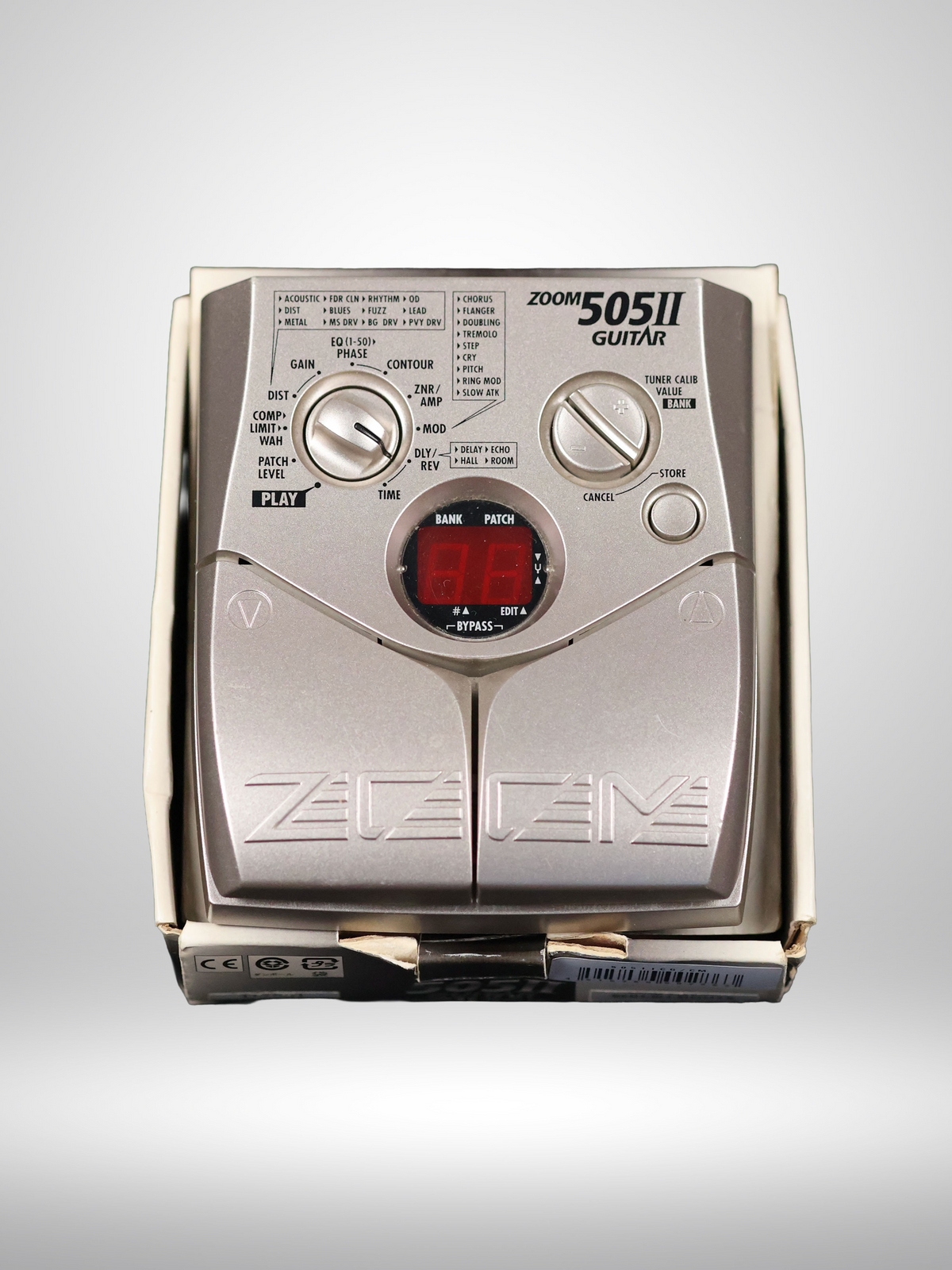

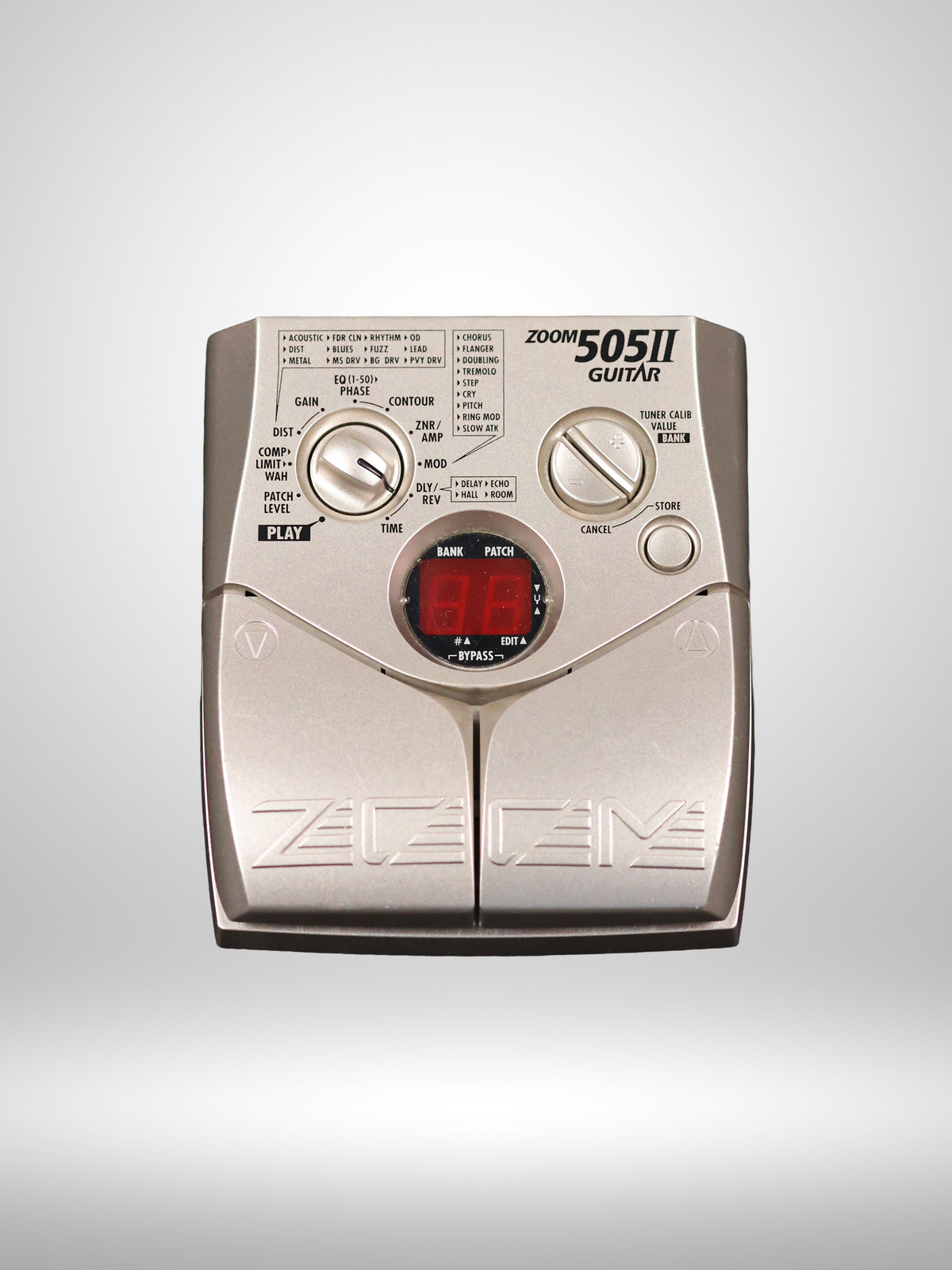

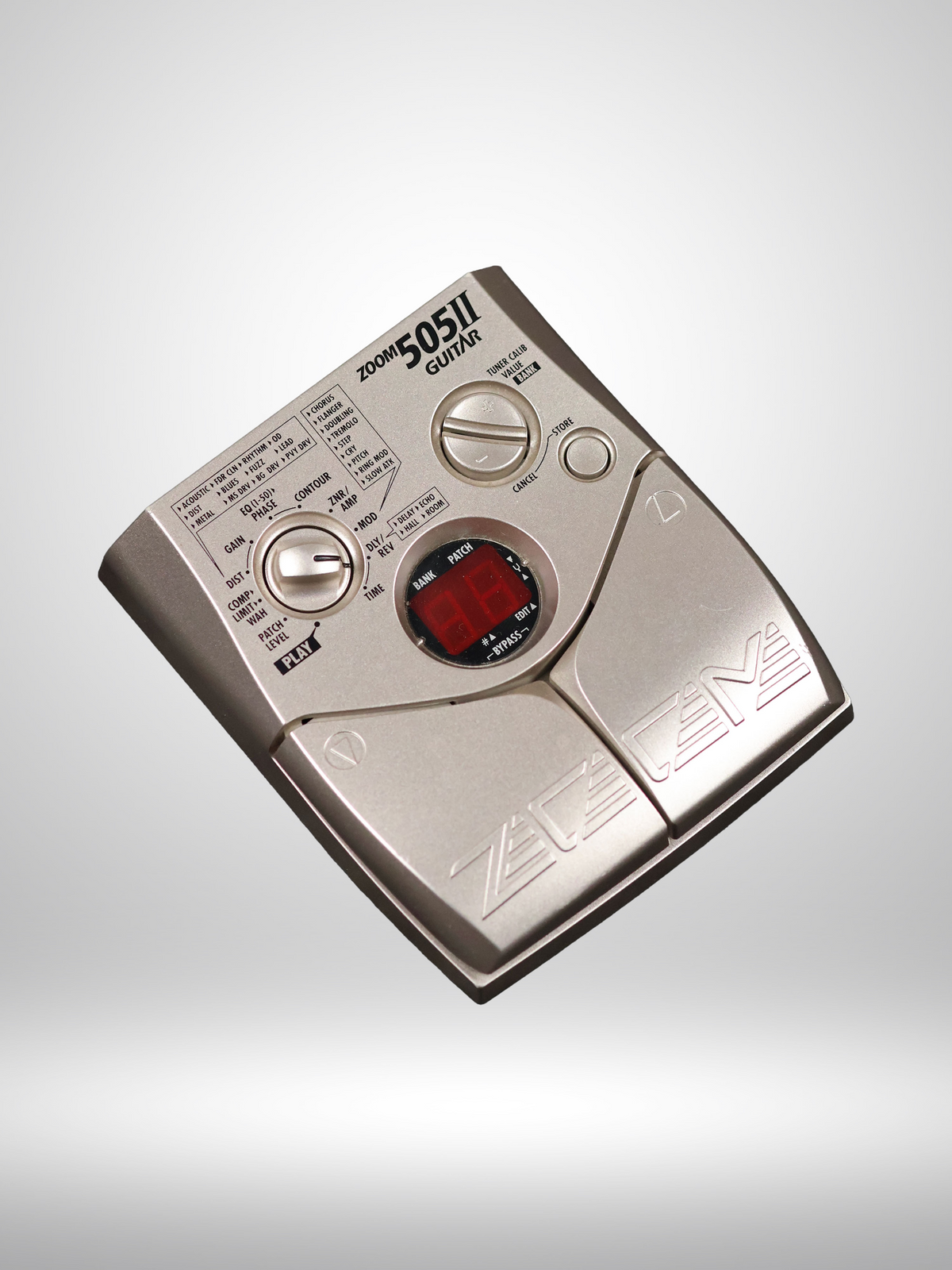

Zoom 505 II Guitar Multi-Effects Pedal, Used, with Original Box.
The Zoom 505 II is a compact digital multi-effects processor for electric guitar featuring 33 effects, up to 9 simultaneous effects, and 36 user-rewritable patch memories.
Core Specifications
- Built-in Effects: 33 total effects across 7 modules (up to 9 simultaneous effects, including ZNR noise reduction and amp simulation)
- Patch Memory: 36 user-rewritable patches (6 banks × 6 patches)
- Sampling Frequency: 31.25 kHz
- A/D Conversion: 16-bit, 64x oversampling
- D/A Conversion: 16-bit, 8x oversampling
- Display: 2-digit, 7-segment red LED display
- Tuner: Integrated auto-chromatic tuner
I/O & Control
- Guitar Input: 1/4" monaural phone jack (Input impedance: 470 kΩ)
- Output: 1/4" stereo phone jack (Combined line and headphone output, minimum load impedance 10 kΩ)
- Control Input: 1/4" jack for an optional expression pedal (FP01/FP02) or footswitch (FS01)
Power & Physical
- Power Requirements: 9V DC, 300 mA center-negative AC adapter (Zoom AD-0006) or 4 × IEC R6 (AA) batteries
- Battery Life: Approximately 28 hours with alkaline batteries (or 8 hours with manganese batteries)
- Dimensions (W × D × H): 125 mm × 145 mm × 40 mm (approx. 4.9" × 5.7" × 1.6")
- Weight: 280 g (without batteries)
